Discs for harrows

Standard concave disc
Standard concave disc

DIAMETER D

THICKNESS

PLAIN DISC - Weight

NOTCHED DISC - Weight*

mm

in

mm

in

kg

lb

kg

lb

250

10''

2,5

3/32

1,15

2,5

0,9 2

280

11''

2,5

3/32

1,30

2,9

1 2,2

305

12''

2,5

3/32

1,40

3,1

1,2 2,65

310

12''

4,5

11/64

2,80

6,2

2,6 5,7

325

12,5''

2,5

3/32

1,60

3,5

1,4 3,1

330

13''

2,5

3/32

1,65

3,6

1,5 3,3

350

13,5''

3

1/8

2,20

4,9

1,9 4,2

360

14''

4,5

11/64

3,70

8,2

3,5 7,7

410

16''

3,2

1/8

3,50

7,7

3 6,6

410

16''

6

15/64

6,10

13,4

5,8 12,8

460

18''

3,2

1/8

4,40

9,7

3,6 7,9

460

18''

3,5

9/64

4,80

10,6

3,9 8,6

460

18''

6

15/64

6,80

15,0

6,5 14,3

510

20''

3,5

9/64

5,80

12,8

5,2 11,5

510

20''

4

5/32

6,70

14,8

6 13,2

510

20''

4,5

11/64

7,30

16,1

6,5 14,3

510

20''

5

13/64

8,40

18,5

7,7 17

510

20''

6

15/64

9,60

21,2

8,6 18,2

530

21''

4

5/32

7,50

16,5

6,7 14,8

530

21''

6

15/64

10,50

23,1

9,7 21,4

560

22''

4

5/32

8,20

17,64

7,2 15,63

560

22''

4,5

11/64

9,00

19,8

7,9 17,4

560

22''

5

13/64

9,90

21,48

8,8 19,1

560

22''

6

15/64

11,60

25,60

10,3 22,7

610

24''

5

13/64

11,60

25,60

10,5 23,1

610

24''

6

15/64

14,10

31,1

12,7 28

610

24''

7

9/32

16,45

36,27

14,84 32,72

610

24''

8

5/16

18,80

41,45

17 37,48

660

26''

5

13/64

13,20

29,05

12,2 26,84

660

26''

6

15/64

17,20

37,9

15,5 34,2

660

26''

7

9/32

20,10

44,3

18,1 39,9

660

26''

8

5/16

23,60

52,0

20,7 45,6

710

28''

6

15/64

20,03

44,2

18,5 40,8

710

28''

7

9/32

23,00

50,71

21,5 47,4

710

28''

8

5/16

26,50

58,42

24,5 51,01

710

28''

10

25/64

32,7

52,14

29,8 65,56

760

30''

8

5/16

29,10

64,2

26,8 59,1

760

30''

10

25/64

36,20

79,8

33,5 73,9

810

32''

8

5/16

30

65

28 62

810

32''

10

25/64

43

95

40 88

910

36''

12

15/32

68

150

60 132

960

37,5''

12

15/32

77

169

70 154

1016

40''

12

15/32

82

180

77 169
*weights of the notched discs are indicative: deviations occur due to the number and type of notch
31977a25
Concave discs (for mould)
Concave discs (for mould)

DIAMETER D



Mould Cod. 003

Mould Cod. 042

Mould Cod. 002

Mould Cod. 014

Mould Cod. 004

Mould Cod. 005

R

370

14'' 9/16

508

20”9/16

525

20'' 43/64

540

21'' 17/64

570

22'' 7/16

585

23'' 1/32
  C C C C C C

mm

in



mm

in

mm

in

mm

in

mm

in

mm

in

mm

in

250

10''   - - 15,5 39/64 - - - - 14 35/64 - -

280

11''   27 1'' 1/16 20 25/32 - - - - 17,5 11/16 - -

305

12''   32 1'' 17/64 23,5 59/64 - - - - 20,5 13/16 - -

310

12''   34 1'' 11/32 24 15/16 23,5 59/64 - - 21,5 27/32 21 53/64

325

12,5''   37,5 1'' 15/32 26,5 1'' 3/64 26 1'' 1/32 - - 23,5 59/64 23 29/32

330

13''   39 1'' 17/32 27,5 1'' 5/64 26,5 1'' 3/64 - - 24,5 31/32 24 15/16

350

13,5''   44 1'' 47/64 31 1'' 7/32 30 1'' 3/16 - - 27,5 1'' 5/64 27 1'' 1/16

360

14''   47 1'' 27/32 33 1'' 19/64 32 1'' 17/64 31 1'' 7/32 29 1'' 9/64 28 1'' 7/64

410

16''   62 2'' 7/16 43 1'' 11/16 41,5 1'' 41/64 40,5 1'' 19/32 38 1'' 1/2 37 1'' 29/64

460

18''   80 3'' 5/32 55 2'' 11/64 53 2'' 3/32 51,5 2'' 1/32 48,5 1'' 29/32 47 1'' 27/32

510

20''   - - 68,5 2'' 45/64 66 2'' 19/32 64 2'' 33/64 60 2'' 23/64 58,5 2'' 19/64

530

21''   - - - - 72 2'' 53/64 69,5 2'' 47/64 65 2'' 9/16 63,5 2'' 1/2

560

22''   - - - - 81 3'' 3/16 78 3'' 5/64 73,5 2'' 57/64 71 2'' 51/64

610

24''   - - - - 98 3'' 55/64 94 3'' 45/64 - - 86 3'' 25/64

660

26''   - - - - - - 112,5 4'' 27/64 - - 102 4'' 1/64

710

28''   - - - - - - 133 5'' 15/64 - - 120 4'' 23/32

760

30''   - - - - - - - - - - 140 5'' 33/64

810

32''   - - - - - - - - - - - -

910

36''   - - - - - - - - - - - -

DIAMETER D



Mould Cod. 006 Mould Cod. 075 Mould Cod. 007 Mould Cod. 054 Mould Cod. 060 Mould Cod. 074

R

610

24'' 1/64

645

25'' 25/64

670

26'' 3/8

695

27'' 23/64

725

28'' 35/64

740

29'' 9/64
  C C C C C C

mm

in



mm

in

mm

in

mm

in

mm

in

mm

in

mm

in

250

10''   - - - - - - - - - - - -

280

11''   - - - - - - - - - - - -

305

12''   - - - - 17,5 11/16 - - 16 5/8 - -

310

12''   - - - - 18 45/64 - - 16,5 21/32 - -

325

12,5''   - - - - 20 25/32 - - 18,5 47/64 - -

330

13''   - - - - 20,5 13/16 - - 19 3/4 - -

350

13,5''   - - - - 23 29/32 - - 21,5 27/32 - -

360

14''   - - - - 24,5 31/32 - - 23 29/32 - -

410

16''   35,5 1'' 25/64 33,5 1'' 5/16 32 1'' 17/64 - - 29,5 1'' 5/32 - -

460

18''   45 1'' 49/64 42,5 1'' 43/64 41 1'' 39/64 - - 37,5 1'' 15/32 - -

510

20''   56 2'' 13/64 52,5 2'' 1/16 50,5 1'' 63/64 - - 46 1'' 13/16 45 1'' 49/64

530

21''   60,5 2'' 3/8 57 2'' 1/4 54,5 2'' 9/64 - - 50 1'' 31/32 49 1'' 59/64

560

22''   68 2'' 43/64 64 2'' 33/64 61 2'' 13/32 - - 56 2'' 13/64 55 2'' 11/64

610

24''   81,5 3'' 13/64 76,5 3'' 1/64 73,5 2'' 57/64 70,5 2'' 25/32 - - 66 2'' 19/32

660

26''   97 3'' 13/16 91 3'' 37/64 87 3'' 27/64 83 3'' 17/64 - - 77,5 3'' 3/64

710

28''   114 4'' 31/64 106,5 4'' 3/16 102 4'' 1/64 97,5 3'' 27/32 - - 91 3'' 37/64

760

30''   133 5'' 15/64 123,5 4'' 55/64 118 4'' 41/64 113 4'' 29/64 - - 105 4'' 9/64

810

32''   - - - - 136 5'' 23/64 130 5'' 1/8 - - 121 4'' 49/64

910

36''   - - - - - - - - - - - -

DIAMETER D



Mould Cod. 056 Mould Cod. 059 Mould Cod. 040

R

810

31'' 57/64

993

39'' 3/32

1085

42'' 23/32
  C C C

mm

in



mm

in

mm

in

mm

in

305

12''   - - - - - -

310

12''   - - - - - -

325

12,5''   - - - - - -

330

13''   - - - - - -

350

13,5''   - - - - - -

360

14''   - - - - - -

410

16''   - - - - - -

460

18''   - - - - 24,5 31/32

510

20''   - - - - 30,5 1'' 13/64

530

21''   - - - - 33 1'' 19/64

560

22''   - - - - 36,5 1'' 7/16

610

24''   59,5 2'' 11/32 48 1'' 57/64 43,5 1'' 23/32

660

26''   70 2'' 3/4 56,5 2'' 7/32 51,5 2'' 1/32

710

28''   82 3'' 15/64 65,5 2'' 37/64 60 2'' 23/64

760

30''   94,5 3'' 23/32 75,5 2'' 31/32 69 2'' 23/32

810

32''   108,5 4'' 17/64 86 3'' 25/64 - -

910

36''   140 5'' 33/64 110 4'' 21/64 - -

960

37,5''   157,5 6'' 13/64 - - - -

1016

40''   179 7'' 3/64 - - - -
Concave discs with flat center (for mould)
Concave discs with flat center (for mould)

DIAMETER D



Mould Cod. 009 Mould Cod. 026 Mould Cod. 008 Mould Cod. 033 Mould Cod. 035

P

100

3'' 15/16

130

5'' 1/8

155

6'' 7/64

170

6'' 11/16

175

6'' 57/64

R

570

22'' 7/16

610

24'' 1/64

585

23'' 1/32

585

23'' 1/32

770

30'' 5/16
  C C C C C

mm

in



mm

in

mm

in

mm

in

mm

in

mm

in

250 10''   11,5 29/64 - - - - - - - -
280 11''   15 19/32 - - - - - - - -
305 12''   18,5 47/64 - - - - - - - -
310 12''   19 3/4 - - - - - - - -
325 12,5''   21,5 27/32 - - - - - - - -
330 13''   22 55/64 19 3/4 18,5 47/64 17,5 11/16 - -
350 13,5''   25 63/64 22 55/64 21,5 27/32 20,5 13/16 - -
360 14''   27 1'' 1/16 23,5 59/64 23 29/32 22 55/64 - -
410 16''   36 1'' 27/64 31,5 1'' 15/64 32 1'' 17/64 31 1'' 7/32 - -
460 18''   46 1'' 13/16 41 1'' 39/64 42 1'' 21/32 41 1'' 39/64 30 1'' 3/16
510 20''   58 2'' 9/32 52 2'' 3/64 53 2'' 3/32 52 2'' 3/64 38,5 1'' 33/64
530 21''   - - 57 2'' 1/4 58 2'' 9/32 57 2'' 1/4 42 1'' 21/32
560 22''   - - 64 2'' 33/64 66 2'' 19/32 65 2'' 9/16 47,5 1'' 7/8
610 24''   - - 78 3'' 5/64 80,5 3'' 11/64 79,5 3'' 1/8 58,5 2'' 19/64
660 26''   - - - - 97 3'' 13/16 96 3'' 25/32 69 2'' 23/32
710 28''   - - - - 114 4'' 31/64 113 4'' 29/64 - -
760 30''   - - - - - - - - - -

DIAMETER D



Mould Cod. 045 Mould Cod. 052 Mould Cod. 083 Mould Cod. 085 Mould Cod. 075-1

P

155

5'' 1/8

160

6'' 19/64

178

7'' 1/64

220

8'' 21/32

160

6'' 19/64

R

585

20''

615

24'' 7/32

725

28'' 35/64

850

33'' 15/32

645

25'' 25/64
  C C C C C

mm

in



mm

in

mm

in

mm

in

mm

in

mm

in

250

10''   - - - - - - - - - -

280

11''   - - - - - - - - - -

305

12''   - - - - - - - - - -

310

12''   20 25/32 - - - - - - - -

325

12,5''   22,5 57/64 - - - - - - - -

330

13''   23 29/32 - - - - - - - -

350

13,5''   27 1'' 1/16 20 25/32 - - - - - -

360

14''   29 1'' 9/64 21,5 27/32 - - - - - -

410

16''   39 1'' 17/32 30 1'' 3/16 24 15/16 - - 28,5 1'' 1/8

460

18''   51 2'' 1/64 39,5 1'' 9/16 32 1'' 17/64 - - 37,5 1'' 15/32

510

20''   64,5 2'' 35/64 50 1'' 31/32 41 1'' 39/64 - - 47,5 1'' 7/8

530

21''   70,5 2'' 25/32 54,5 2'' 9/64 45 1'' 49/64 - - 52 2'' 3/64

560

22''   78 3'' 5/64 61,5 2'' 27/64 51 2'' 1/64 - - 59 2'' 21/64

610

24''   - - - - 62 2'' 7/16 33 1'' 19/64 71,5 2'' 13/16

660

26''   - - - - 74 2'' 29/32 40,5 1'' 19/32 86 3'' 25/64

710

28''   - - - - 87 3'' 27/64 49 1'' 59/64 101,5 4''

760

30''   - - - - - - - - 118 4'' 41/64
dichi-con-piano
Bulldog disc
Bulldog disc

DIAMETER D



Mould Cod. 073

R

670

26'' 3/8
  C

mm

in



mm

in

560

22''   49 1'' 59/64

610

24''   61 2'' 13/32

660

26''   74 2'' 29/32

710

28''   89 3'' 1/2
The model can also be offered in a flat version (ref. Mold cod. 073-1).
dischi-bulldog-073
Aggressive disc
Aggressive disc

DIAMETER D



Mould Cod. 124

P

135

5'' 5/16

R

515 20'' 9/32
  C

mm

in



mm

in

510

20''   45 1'' 49/64

560

22''   57 2'' 1/4
dichi-con-piano-stampo-124
Punched concave disc
Punched concave disc

DIAMETER D



Mould Cod. 046
P

160

6'' 19/64
B 234 9'' 7/32
A 10,7°
  C

mm

in



mm

in

410 16''   14,5 37/64
460 18''   19,5 49/64
510 20''   24 15/16
560 22''   29 1'' 9/64
dichi-con-piano-stampo-046
Punched concave disc
Punched concave disc

DIAMETER D



Mould Cod. 093
P 145 5'' 45/64
B 210 8'' 17/64
R 1.000 39'' 3/8
  C

mm

in



mm

in

410 16''   15 19/32
460 18''   20 25/32
510 20''   26 1'' 1/32
560 22''   33,5 1'' 5/16
dichi-con-piano-stampo-114-lemken
Punched concave discs
Punched concave discs
DIAMETER D   Mould Cod. 047 Mould Cod. 114
P 80 3'' 5/32 100 3'' 15/16
B 225 8'' 55/64 230 9'' 1/16
R 730 28'' 47/64 950 37'' 13/32
  C C
mm in   mm in mm in
510 20''   59 2'' 21/64 - -
560 22''   36 1'' 27/64 - -
620 24,5''   45,5 1'' 51/64 - -
645 25''   65 2'' 9/16 - -
735 29''   - - 62 2'' 7/16
waved-disc-stampo-047
Disc with flat center
Disc with flat center

DIAMETER D



Mould Cod. 010

P

150 5'' 29/32

R

670 26'' 3/8
  C

mm

in



mm

in

410

16''   35 1'' 3/8

460

18''   43,5 1'' 23/32

510

20''   53 2'' 3/32

530

21''   57 2'' 1/4

560

22''   64 2'' 33/64

610

24''   76 2'' 63/64

660

26''   89 3'' 1/2

710

28''   105 4'' 9/64
dichi-con-piano-stampo-010
Conic discs
Conic discs
DIAMETER D   Mould Cod. 020 Mould Cod. 020-1
P 260 10'' 15/64 284 11'' 3/16
R 650 25'' 19/32 600 24'' 1/64
A 26,5° 29°
  C C
mm in   mm in mm in
510 20''   62,5 2'' 29/64 82,5 3'' 1/4
560 22''   72,5 2'' 55/64 96,5 3'' 51/64
610 24''   85 3'' 11/32 110 4'' 21/64
660 26''   97,5 3'' 27/32 124 4'' 7/8
710 28''   108,5 4'' 17/64 - -
760 30''   122,5 4'' 53/64 - -
dischi-conic-stampo-020-020-1
8 waves discs with flat center
8 waves discs with flat center

DIAMETER D



Mould Cod. 012
P 170 6'' 11/16 220 8'' 21/32
  C C

mm

in



mm

in

mm

in

325 12,5''   23 29/32 - -
410 16''   35 1'' 3/8 - -
460 18''   43 1'' 11/16 - -
470 18,5''   45 1'' 49/64 - -
510 20''   50 1'' 31/32 - -
530 21''   52 2'' 3/64 - -
560 22''   - - 59 2'' 21/64
580 23''   - - 63 2'' 15/32
630 25''   - - 70 2'' 3/4

DIAMETER D



Mould Cod. 069

P

220

8'' 11/16
  C

mm

in



mm

in

520 20,5''   20 25/32
580 23''   24,5 31/32
630 25''   28 1'' 7/64
waved-disc-stampo-012
waved-disc-stampo-069
12 waves disc with flat center
12 waves disc with flat center

DIAMETER D



Mould Cod. 079

P

228

8'' 31/32
  C

mm

in



mm

in

460 18''   15,5 39/64
560 22''   22 55/64
waved-disc-stampo-079
Six pointed star disc
Six pointed star disc

DIAMETER D



Mould Cod. 021

A

27°

  C

mm

in



mm

in

520 20'' 8/16   29 1'' 9/64
The points can turn left or right.
stardisc-stampo-021
Cross cutter disc
Cross cutter disc

DIAMETER D



Mould Cod. 128

P

145

5'' 45/64
  C

mm

in



mm

in

480 19''   113 4'' 29/64
500 19,5''   121 4'' 49/64
waved-disc-stampo-128
Flow disc
Flow disc

DIAMETER D



Mould Cod. 054

R

695 27'' 23/64


C

NOTE

mm

in



mm

in


710 28''   97,5 3'' 27/32 front & rear
760 30''   113 4'' 29/64 front & rear
810 32''   130 5'' 1/8 front & rear
dischi-bombati-054-flou
Waved disc
Waved disc

DIAMETER D

  Mould Cod. 080

B

92 3'' 5/8
  C
mm in



mm

in

460 18''

6

15/64

510 20''   6 15/64
570 22,5''   6 15/64
610 24''   6 15/64
waved-disc-stampo-080
Standard Flat discs
Standard Flat discs

DIAMETER D

THICKNESS

PLAIN DISC - Weight NOTCHED DISC - Weight*

mm

in

mm

in

kg

lb

kg lb
406 16'' 3 1/8 2,85 6,28 2,74 6,04
406 16'' 3,5 9/64 3,34 7,36 3,21 7,08
406 16'' 4 5/32 3,83 8,44 3,68 8,11
406 16'' 5 13/64 4,78 10,54 4,59 10,12
433 17'' 4 5/32 4,25 9,37 4,08 8,99
433 17'' 4,5 11/64 4,79 10,56 4,60 10,14
450 17,5'' 4 5/32 4,4 9,7 4,22 9,30
457 18'' 3,5 9/64 4,08 9 3,92 8,62
457 18'' 4 5/32 4,68 10,32 4,49 9,90
457 18'' 4,5 11/64 5,27 11,62 5,06 11,16
457 18'' 5 13/64 5,84 12,87 5,61 12,35
457 18'' 6 15/64 6,97 15,37 6,69 14,75
457 18'' 7 9/32 8,09 17,84 7,77 17,11
470 18,5'' 5 13/64 5,9 13,01 5,66 12,48
508 20'' 3,5 9/64 5,23 11,53 5,02 11,07
508 20'' 4 5/32 5,97 13,16 5,73 12,63
508 20'' 4,5 11/64 6,7 14,77 6,43 14,11
508 20'' 5 13/64 7,43 16,38 7,13 15,72
508 20'' 6 15/64 8,84 19,49 8,49 18,70
582 23'' 4 5/32 7,89 17,4 7,57 16,69
582 23'' 4,5 11/64 8,86 19,53 8,51 18,74
582 23'' 5 13/64 9,82 21,65 9,43 20,77
582 23'' 6 15/64 11,7 25,79 11,23 24,76
610 24'' 4,5 11/64 9,75 21,49 9,36 20,64
610 24'' 5 13/64 10,81 23,83 10,38 22,86
610 24'' 6 15/64 12,89 28,42 12,37 27,27
635 25'' 5 13/64 11,58 25,53 11,12 24,49
635 25'' 6 15/64 13,99 30,84 13,43 29,61
660 26'' 6 15/64 16 35,27 15,36 33,86
660 26'' 8 5/16 21,5 47,4 20,64 45,50
711 28'' 6 15/64 19,5 42,99 18,72 41,27
711 28'' 8 5/16 26,4 58,2 25,34 55,86
762 30'' 8 5/16 31 68,34 29,76 65,61
762 30'' 10 25/64 38 83,78 36,48 80,42
813 32'' 8 5/16 33,5 73,85 32,16 70,90
813 32'' 10 25/64 41,5 91,5 39,84 87,83
914 36'' 12 15/32 65 143,3 62,40 137,57
*weights of the notched discs are indicative: deviations occur due to the number and type of notch
Flat disc notched 1
Center hole options
Center hole options

HOLE Cod.

A
mm in mm in mm in mm in mm in mm in mm in mm in mm in mm in

T

20 25/32 30 1'' 3/16 35 1'' 3/8 40 1'' 37/64 45 1'' 49/64 50 1'' 31/32 55 2'' 11/64 60 2'' 23/64 65 2'' 9/16 70 2'' 3/4

Q

23 29/32 26 1'' 1/32 29 1'' 9/64 31 1'' 7/32 33 1'' 19/64 41 1'' 39/64 46 1'' 13/16 51 2'' 1/64 56 2'' 13/64 - -

E

37 1'' 29/64 41 1'' 39/64 67 2'' 41/64 88 3'' 15/32 90 3'' 35/64 92 3'' 5/8 98 3'' 55/64 - - - - - -

HOLE Cod.

A H
mm in mm in

B





35 1'' 3/8 39 1'' 17/32
41  1'' 39/64 46  1'' 13/16
27 1'' 1/16 29  1'' 9/64
Particular holes can be designed

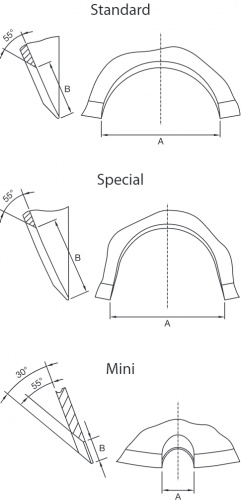

Disc Notches
Disc Notches

Standard

DIAMETER D

Number of notches

A

B

mm

in

mm

in

mm

in
410 16'' 8

80

3'' 5/32

35

1'' 3/8
460 18'' 9

80

3'' 5/32

35

1'' 3/8
510 20'' 10

80

3'' 5/32

35

1'' 3/8
560 22'' 10

80

3'' 5/32

35

1'' 3/8
610 24'' 10

80

3'' 5/32

40

1'' 37/64
660 26'' 10

90

3'' 35/64

40

1'' 37/64

Only for exterior edge

Special-large

DIAMETER D

Number of notches

A

B

mm

in

mm

in

mm

in
610 24'' 10 90 3'' 35/64

50

1'' 31/32
660 26'' 10 90 3'' 35/64 50 1'' 31/32
710 28'' 10 90 3'' 35/64 ​​​​​​​50 1'' 31/32
760 30'' 10 90 3'' 35/64 ​​​​​​​50 1'' 31/32
810 32'' 12 90 3'' 35/64 ​​​​​​​50 1'' 31/32
960 37,5'' 12 90 3'' 35/64 ​​​​​​​50 1'' 31/32
1016 40'' 13 90 3'' 35/64 50 1'' 31/32

Mini

DIAMETER D

Number of notches

A

B

mm

in

mm

in

mm

in
410 16'' 20 20 25/32

10

25/64
460 18'' 20 20 25/32 11 7/16
510 20'' 20 20 25/32 12 15/32

Only for exterior edge

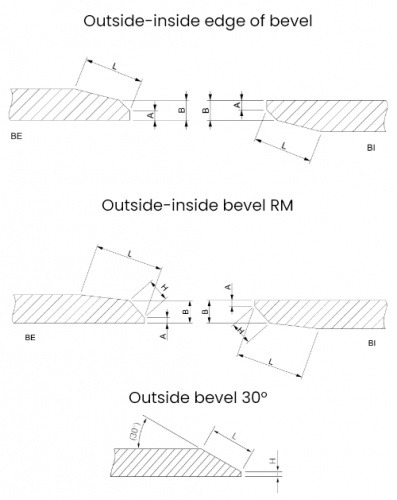

Concave disc bevels
Concave disc bevels

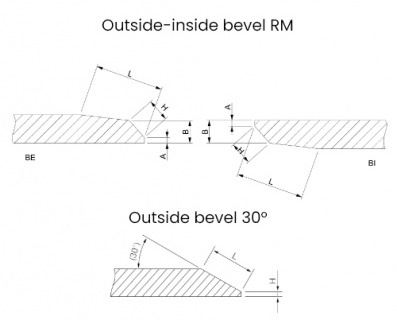

Outside-inside bevel RM

THICKNESS

L

H

A

B

mm

in

mm

in

mm

in mm in

mm

in
4 5/32 10 25/64 3 1/8 1 3/64 2,5 3/32
4,5 11/64 10 25/64 3 1/8 1,1 3/64 3 1/8
5 13/64 12 15/32 4 5/32 1,2 3/64 4 5/32
6 15/64 15 19/32 5 13/64 1,3 3/64 5 13/64
7 9/32 20 25/32 6 15/64 1,5 1/16 6 15/64
8 5/16 20 25/32 7 9/32 2,25 3/32 7 9/32
10 25/64 20 25/32 8 5/16 2,5 3/32 8 5/16
12 15/32 23 29/32 10 25/64 4,25 11/64 10,5 13/32

Outside bevel 30°

THICKNESS

L

H

mm

in

mm

in

mm

in
3 1/8 3,5 9/64 0,8 1/32
3,5 9/64 4,5 11/64 0,8 1/32
4 5/32 6 15/64 1 3/64
4,5 11/64 7 9/32 1 3/64
5 13/64 8 5/16 1 3/64
6 15/64 10 25/64 1 3/64
Can't find what are you looking for?
Call us on +39 0424.577222
or write to us HERE
